Building a small slow sand water filter for individual use
San Juan Sunset
images by: David Tarsi

 Introduction
 Specific_details
 Baffle_detail
 Input screen
 Complete filter
> Filter drawing
 Input without coarse screen
 Fine screen
 Baffle pipe design

 Recent Modifications


 JUNE 1 2008: NEW FILTER DESIGN




Slow sand water filter drawing

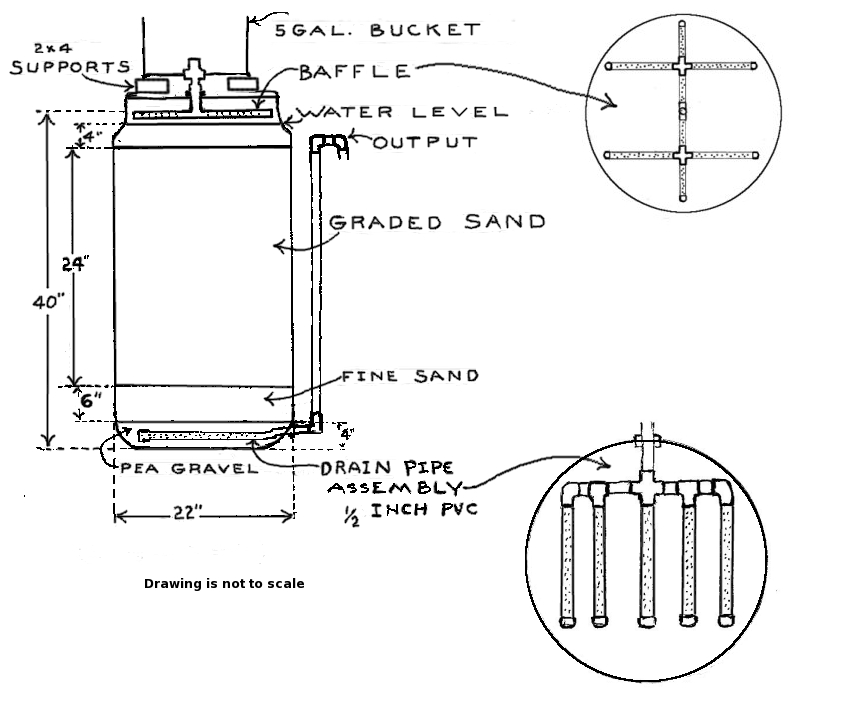

Below is the drawing of the newest tested functional design (April 2008):

new filter drawing
